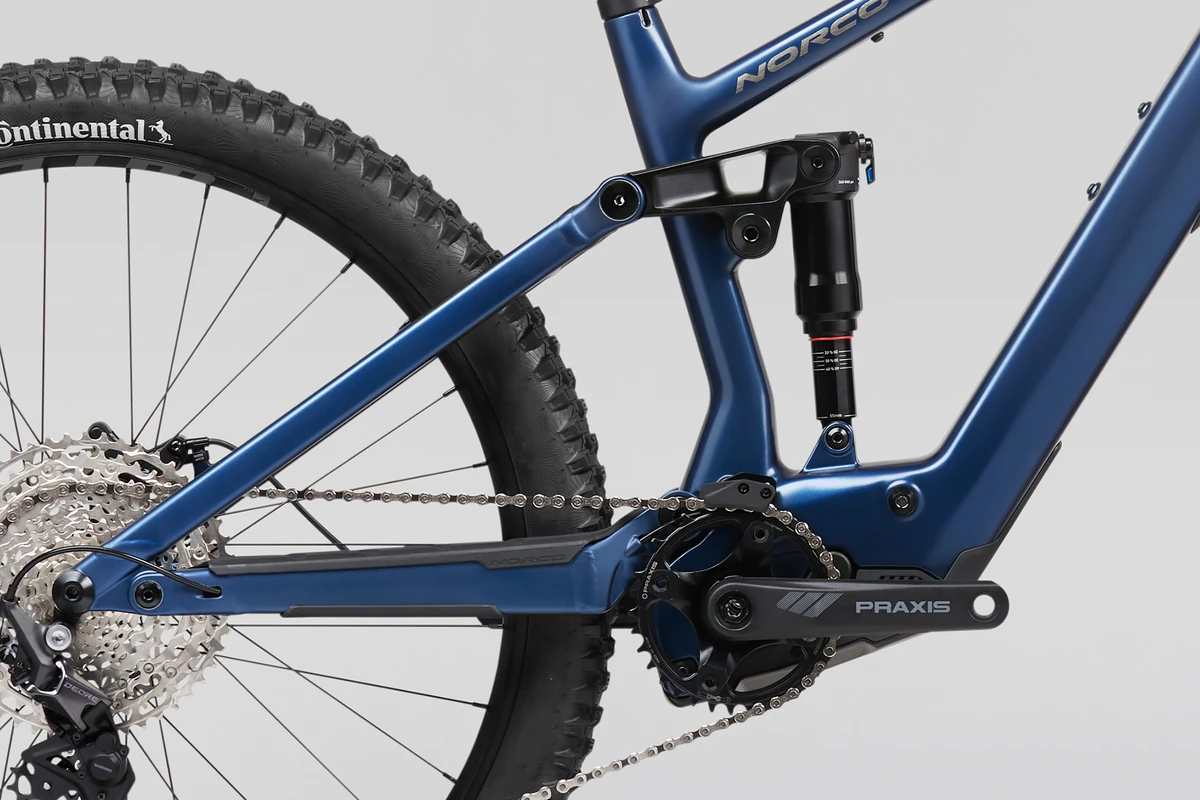

Get more rides in and make the most of every minute of the lightweight Fluid VLT C3 140. Featuring the next-level Bosch Performance Line SX drive system, and 140mm of precision-tuned suspension, integrating mixed wheels across all 5 frame sizes for optimum weight balance & handling.
| FRAME | Fluid VLT Carbon Front Triangle, Alloy SS and CS, 27.5" Wheel, 140mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™ |
| FORK | RockShox suspension |
| REAR SHOCK | RockShox Deluxe Select+, 185x55mm Trunion |
| REAR SHIFTER | Shimano Deore SL-M6100 |
| REAR DERAILLEUR | Shimano Deore RD-M6100 |
| CRANKSET | Praxis Alloy HD eMTB, 165mm |
| CASSETTE | Shimano Deore CS-M6100-12 11-51T, 12 Speed |
| CHAIN | KMC e12 |
| FRONT BRAKE | TRP Slate EVO, 4 Piston |
| FRONT BRAKE ROTOR | TRP TR203, 203mm, 2.3mm Thick |
| REAR BRAKE | TRP Slate EVO, 4 Piston |
| REAR BRAKE ROTOR | TRP TR180, 180mm, 2.3mm Thick |
| BRAKE LEVERS | TRP Slate EVO for Shimano I-Spec |
| HANDLEBAR | 6061 Butted Alloy, 800mm, 25mm Rise |
| STEM | 6061 Alloy 40mm Length, 35mm Clamp |
| SEATPOST | TranzX YSI34 Dropper, 125mm (S1), 150mm (S2), 170mm (S3), 200mm (S4, S5) |
| HEADSET | Sealed ZS |
| HEADSET SPACER | Carbon, 2x10mm, 1x5mm |
| SADDLE | WTB Volt Med |
| GRIPS | WTB Wavelength |
| FRONT HUB | Bear Pawls 110x15mm Boost, 6 Bolt |
| REAR HUB | Bear Pawls, 6 Pawl 3 Sealed Bearing, Steel Driver Body, 6-Bolt, Micro Spline |
| RIMS | WTB ST Tough 32H, 27.5" Rear, 29" Front, 30mm ID |
| FRONT TIRE | Continental Kryptotal 29" x 2.4" Trail |
| REAR TIRE | Continental Xynotal 27.5" x 2.4" Trail |
| DRIVE UNIT | Bosch Performance Line SX |
| BATTERY | Bosch CPT 400Wh |
| WEIGHT | 20.3 kg (44.7 lbs) |
| WEIGHT SIZE | S3 |
| 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|
| 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
| Travel (mm front/mm rear) | ||||
150/140 | ||||
| Reach | ||||
| 422.5 | 447.5 | 472.5 | 497.5 | 522.5 |
| Stack | ||||
| 610 | 619 | 628 | 637 | 646 |
| HTA Head Tube Angle | ||||
64.5 | ||||
| OS Fork Offset | ||||
44 | ||||
| ST Seat Tube Length | ||||
| 385 | 395 | 415 | 445 | 475 |
| STA Effective Seat Tube Angle | ||||
| 76.50 | 76.75 | 77.00 | 77.25 | 77.50 |
| RC Rear Centre Length | ||||
| 432 | 432 | 436 | 440 | 444 |
| BB Bottom Bracket Drop | ||||
28/8 | ||||
| BBH Bottom Bracket Height | ||||
350 | ||||
| HTT Horizontal Top Tube | ||||
| 569 | 593 | 618 | 642 | 666 |
| WB Wheelbase | ||||
| 1181 | 1210 | 1243 | 1277 | 1310 |
| SOH Standover | ||||
| 715 | 701 | 703 | 720 | 743 |
| HT Head Tube Length | ||||
| 100 | 110 | 120 | 130 | 140 |
| Trail | ||||
132 | ||||
| Recommended Seatpost Drop | ||||
| 125 | 150 | 170 | 200 | 200 |
| Maximum Post Insertion | ||||
| 240 | 250 | 270 | 300 | 330 |
| Stem Length | ||||
40 | ||||
| Crank Length | ||||
165 | ||||
| Tire Size | ||||
2.35" – 2.6" | ||||
| Water Bottle Compatible | ||||
| 1 x 620 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL |
