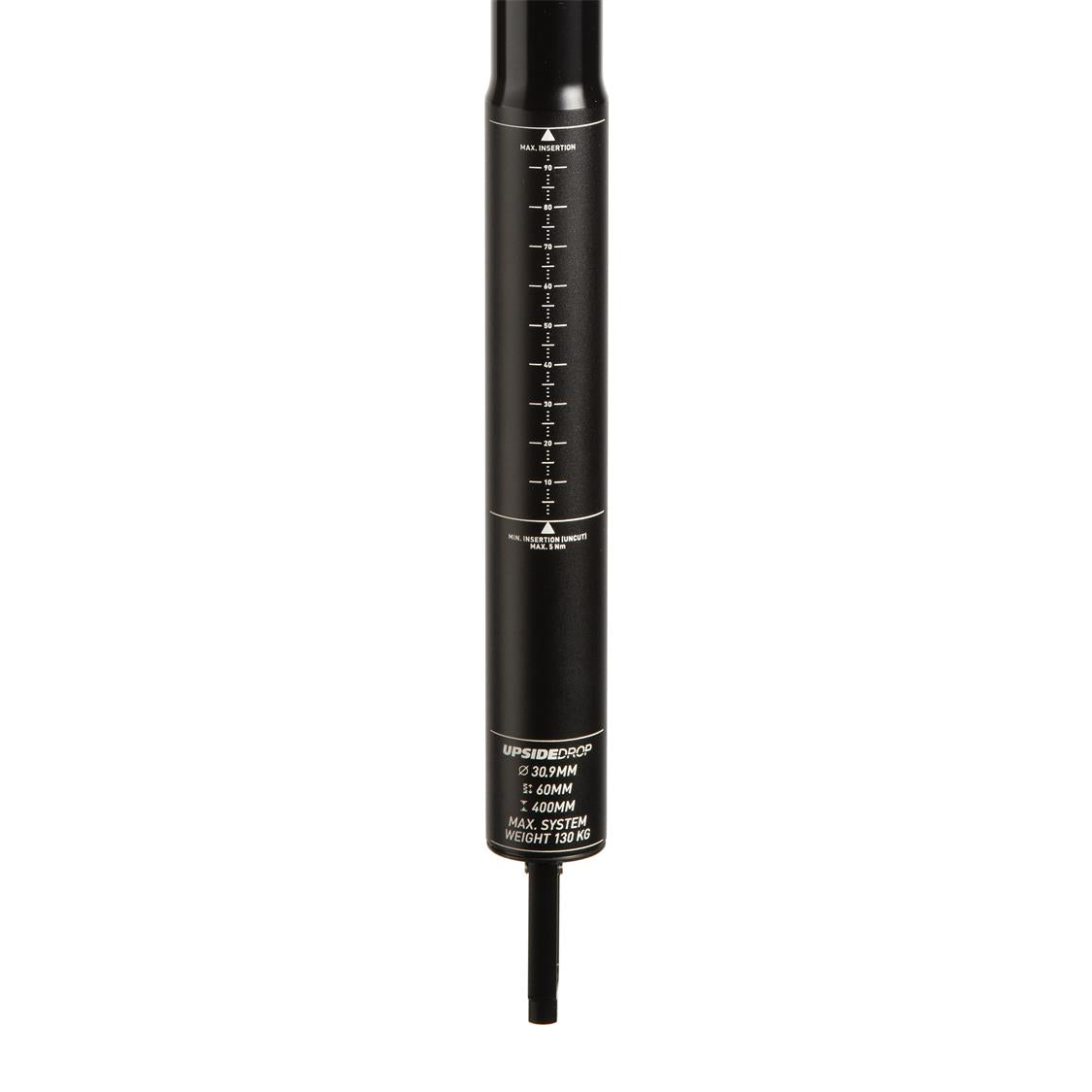

DT SWISS - D232 DROPPER POSTS

The D 232 offers everything you could want from a cross country dropper seat post. The 60 mm travel delivers extra performance when it comes to technical passages. The fully mechanical system is not only reliable and easy to maintain, the Upside Drop technology also makes a weight of just 416 grams possible.

• Net weight: 416 grams
• Max. System weight MTB: 130 kilograms
• ASTM classification MTB: 3
• Stroke [A]: 60mm
• Seat tube diameter: 27.2mm / 30.9mm
• Material saddle clamp: Aluminium
• Material seat tube: Aluminum
• Minimum extension [B]: 210mm
• Maximum insertion [G]: 190mm
• Minimum insertion [C]: 90mm
• Maximum extension [F]: 310mm
• Stack height [H]: 150mm
• Length quick connector [E]: 45mm
• Total length [D]: 400mm
• Actuation type: Mechanical
• Release mechanism: Mechanical
• Compatibility: L1
• Actuation steps: 2, up and down
• Saddle clamp: 2-Bolt vertical
• Inclusive: Cable with cable end crimps, L1 Trigger Matchmaker, No Carbon Paste
